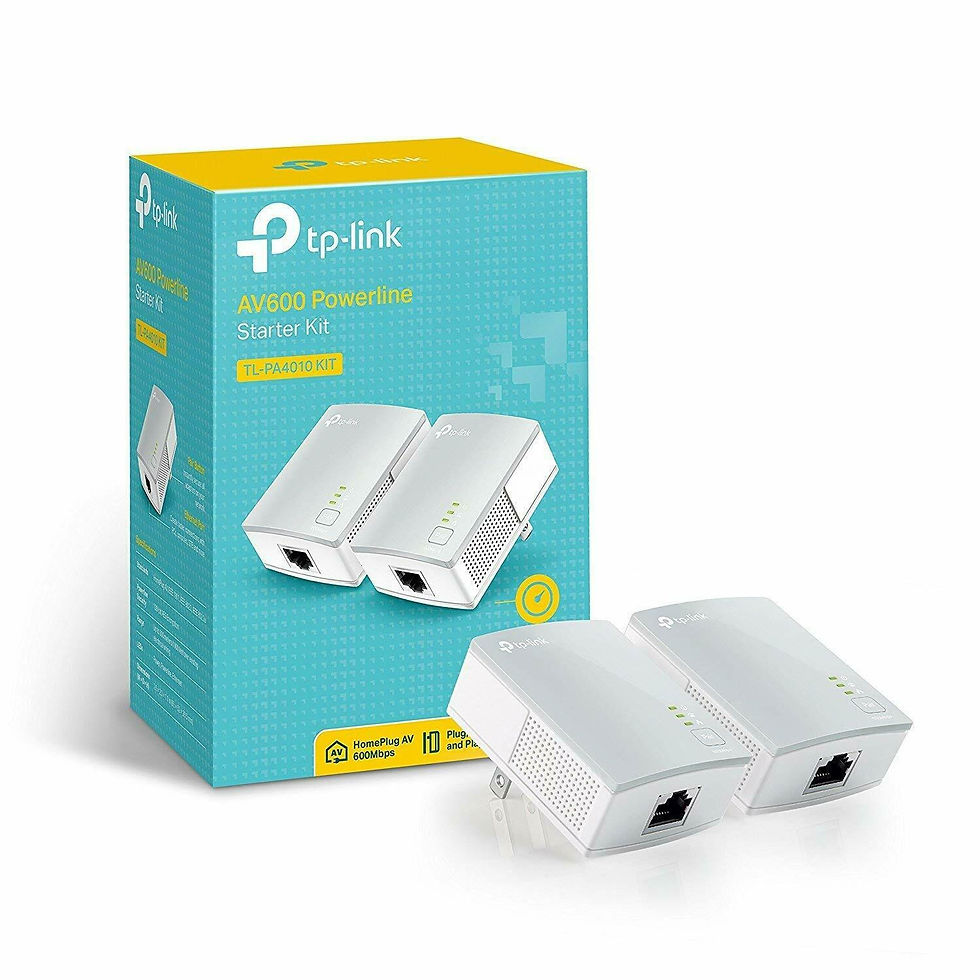

TP-LINK Powerline AV600 Nano Adapter Starter Kit TL-PA4010KIT V1.20
Overview
The TL-PA4010 TKIT expands your home's network over electrical wiring, allowing connected devices to reach speeds up to 500Mbps for lag-free gaming and HD streaming.
More Internet in More Rooms
Powerline adapters work in groups of two or more to expand your home using its existing electrical wiring. Simply connect one of the adapters to your router with an Ethernet cable and plug it into a nearby power outlet. When you plug a second adapter into a different outlet, you instantly create a network connection.
High-Speed Internet for Your Entertainment
The TL-PA4010 KIT gives you lightning-fast data transfer of up to 500Mbps1 and far-reaching coverage. Combined, they make an excellent home solution for connecting Internet-ready devices, such as computers, smart TVs, and game consoles. Use up to 16 adapters throughout your home for ultimate network expansion.
Save Energy
The adapter's "Power-Saving" Mode uses significantly less energy compared to standard powerline adapters. When no data has been transmitted over a certain period of time, the TL-PA4010P TKIT automatically switches from "Working" Mode to "Power-Saving" Mode, which reduces power consumption by up to 85%.
Protect Your Network with Advanced Security
Once paired, the adapters safeguard your network with password-protected access. Each connection is kept safe with advanced security encryption.
Industry-leading Warranty
2-year warranty and 24/7 technical support
1 The terms "AV500" and "500Mbps," are derived from applicable specifications and refer to the theoretical maximum physical-layer data transfer rate. Those terms are used on this product solely to indicate its compatibility with other "AV500" or "500Mbps" PowerLine devices. Actual data speeds vary and are limited by the product's Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues. If you are uncertain about your network conditions, you should consult an IT professional to assist in selecting a networking product.
Tech Specs
TP-LINK Powerline AV600 Nano Adapter Starter Kit TL-PA4010KIT V1.20
General
Packaged Quantity
2 (specifications are for single item)
Device Type
Bridge
Enclosure Type
Wall-pluggable
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, HomePlug AV (HPAV)
Data Transfer Rate
500 Mbps
Max Range Indoors
300 m
Encryption Algorithm
128-bit AES
Compliant Standards
IEEE 802.3, IEEE 802.3u, HomePlug AV, Plug and Play, FCC, RoHS
Status Indicators
Power, LAN
Line Properties
Line Coding Format
OFDM
Expansion / Connectivity
Interfaces
1 x HomePlug AV - power ¦ LAN: 1 x 10Base-T/100Base-TX - RJ-45
Power
Power Consumption Operational
4.6 Watt
Miscellaneous
Localisation
United Kingdom, United States, Europe
Software / System Requirements
Software Included
Drivers & Utilities
OS Required
Apple MacOS, Linux, Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista, Windows 8
Dimensions & Weight
Width
6.5 cm
Depth
5.2 cm
Height
2.85 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
